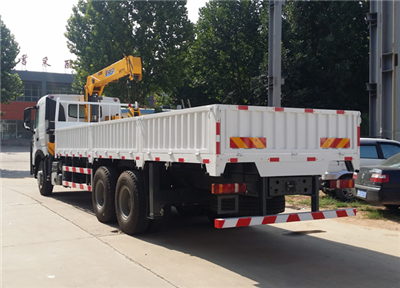

SINOTRUK HOWO A7 Chassis with 10T Crane
| SPECIFICATION FOR CRANE | ||||
| Max Lifting Capacity | 10000 kg | |||
| Max Lifting Moment | 25 T.M | |||
| Max Oil Flow of Hydraulic System | 63 L/min | |||
| Max Pressure of Hydraulic System | 26 MPa | |||
| Rotation Angle | All Rotation | |||
| Max.Working radius (m) | 12 m | |||
| Supporting Leg | Four Supporting Leg with Hydraulic Control (Including Two Rear Supporting Legs) | |||
| SPECIFICATION FOR CHASSIS | ||||
| Dimension(Lx W xH)（mm） | 11963×2496×3850 | |||
| Loading Capacity (Ton) | 25 Ton | |||
| Cargo body size (LxWxH) (mm) | 8000×2300×600 ,Bottom 3 mm, Side 2 mm | |||
| Approaching angle/Departure angle（°） | 16/9 | |||
| Overhang(front/rear) (mm) | 1500/3288 | |||
| Wheel base (mm) | 5825+1350 | |||
| Max speed（km/h） | 102 | |||
| Curb weight（kg） | 15565 | |||
| Engine(Steyr technology, made in China) | Model | WD615.69，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and inter-cooling, directly injection | ||
| Fuel type | Diesel | |||
| Power, max（kw/rpm） | 336HP | |||
| Emission | EUROII | |||
| Fuel tanker capacity（L） | 400L aluminum oil tank | |||
| Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Steering system | Model | ZF8118 | ||
| Front axle | HF9 | |||
| Rear axle | HC16 | |||
| Tire | 12.00R22.5 (Radial Tyre) | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
